Description

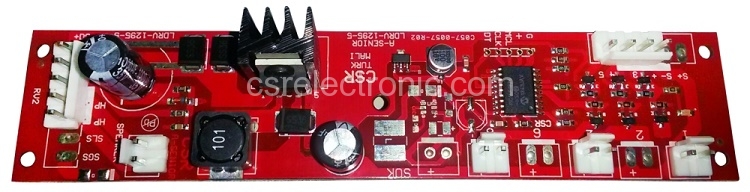

6 Channel 8 MOD LED Driver Card for Beacon lamp

Operating Voltage

9.6-35V DC

Current Drawn

3A at full power

Driving Method

LINEAR current and voltage controlled driver

Driver Feature

Switch mode power supply DC.DC Converter

Control Method

MOD Control with Master Key On/Off Button

8 Different Flash Mode

Initial Operation Mode

Quartet Flash Mode at the initial power

LED Channel

6 Channel Independent LED Output

LED Channel Current

LINEAR for each channel, 1Amp per channel

Physical Specifications

Fr4 Double Layer PCB

Dimension

184x35mm

Weight

45gr
