operating voltage

DC 12/24V


Current Drawn

700mA


Driving Method

Lineer current and voltage controlled driver

Light Source

3 e.a. power LED 1 to 3W

Application 1

6 e.a 120° power  LED

Application 2

6 e.a power  LED  20° collimator lens

Application 3

3 e.a. power  LED  20° collimator  lens

Outer Cover LENS

Fresnel vertical 40° lineer lens

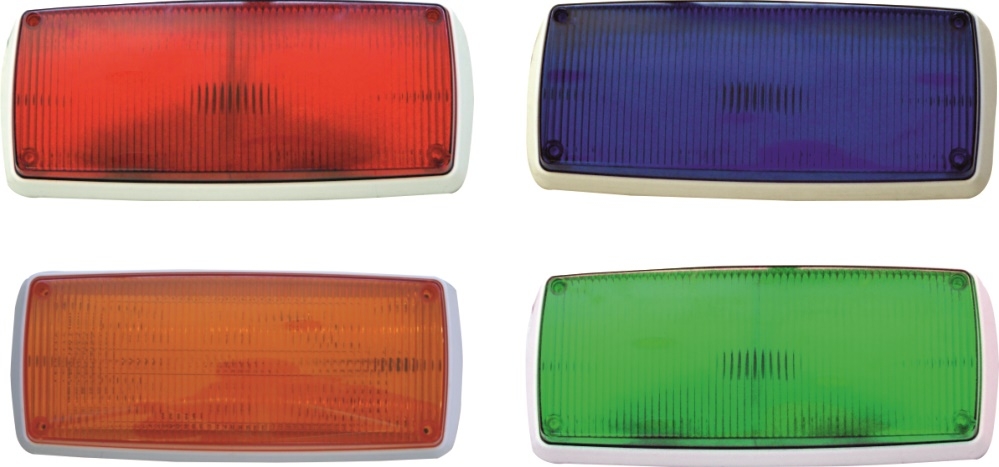

LED Color Cromato graphic spectrum

BLUE: 460-490NM / RED : 620-645NM
AMBER:595-600NM GREEN:515-535NM
COLD WHITE: 5000-7000K

Physical Specifications

Polycarbonate transparent plastic and ABS material

PCB Feature

1.6mm single layer Fr4

Standards

SAE J  1849-595/ IP 67

Dimensions

A-24,5cm)((B-11cm)(C -4,8cm)(D-3,2cm)
